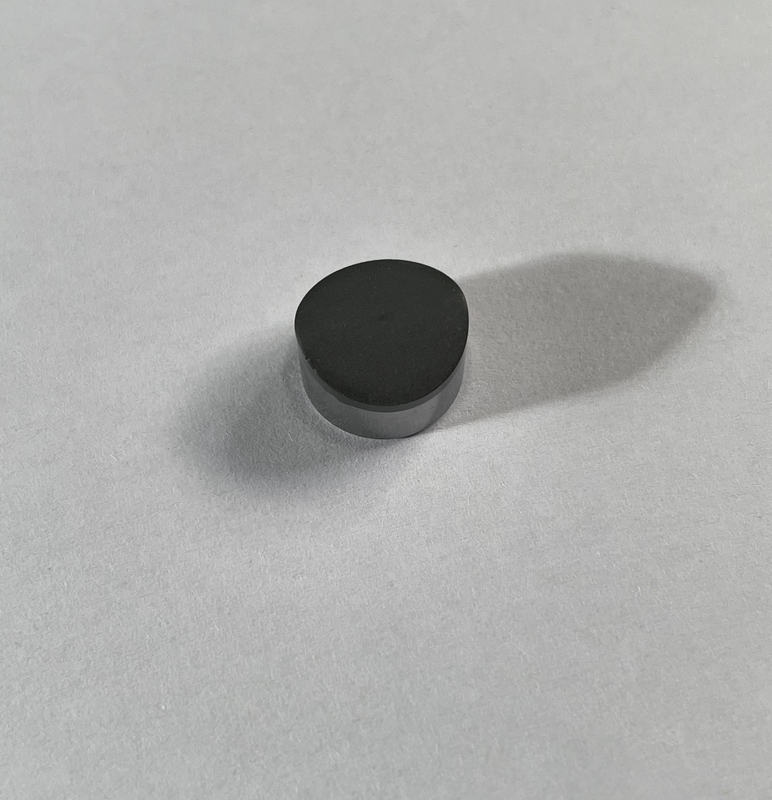

The Shaped PDC Cutter is an advanced non-planar insert designed to revolutionize rock fragmentation in challenging geological formations. Featuring a unique ridge-line geometry, this cutter focuses the weight-on-bit (WOB) onto a concentrated edge, allowing for deeper formation penetration and more efficient "plowing" action compared to standard flat cutters. It is specifically engineered to handle high-impact environments and interbedded strata where conventional cutters might struggle.
Key Features
Point-Loading Efficiency: The ridge-shaped profile creates a high-stress concentration point, enabling easier entry into hard rock and increasing the overall Rate of Penetration (ROP).
Enhanced Impact Toughness: The specialized geometry redistributes impact forces more effectively across the diamond-carbide interface, reducing the risk of chipping or delamination.
Aggressive Plowing Action: The ridge line acts like a wedge, plowing through the formation and creating larger rock chips, which improves cutting efficiency and debris removal.
Improved Thermal Stability: The non-planar interface between the diamond layer and the tungsten carbide substrate provides a larger surface area for heat dissipation, extending cutter life.
Versatile Application: Ideal for use on the nose and primary blades of PDC bits, hybrid bits, and reaming tools in complex drilling projects.
| Feature | Specification |
| Product Name | Shaped (Non-Planar) PDC Cutter |
| Diamond Layer | Ultra-Hard Polycrystalline Diamond |
| Substrate Material | High-Toughness Tungsten Carbide |
| Shape Type | Ridge-Top / Axially Symmetric Ridge |
| Common Sizes | 13mm, 16mm, 19mm (Customizable) |
| Application | Primary Cutting, Impact Zones, Hard Stringers |
Point-Load Fragmentation: The unique ridge-line design achieves deeper formation engagement, significantly boosting ROP in hard rock.
Superior Impact Resistance: The optimized geometry improves stress distribution, effectively preventing chipping under high-frequency impacts.
Efficient Plowing: Replaces traditional flat-face shearing with a "plowing" mechanism, producing larger chips and reducing bit torque fluctuations.
