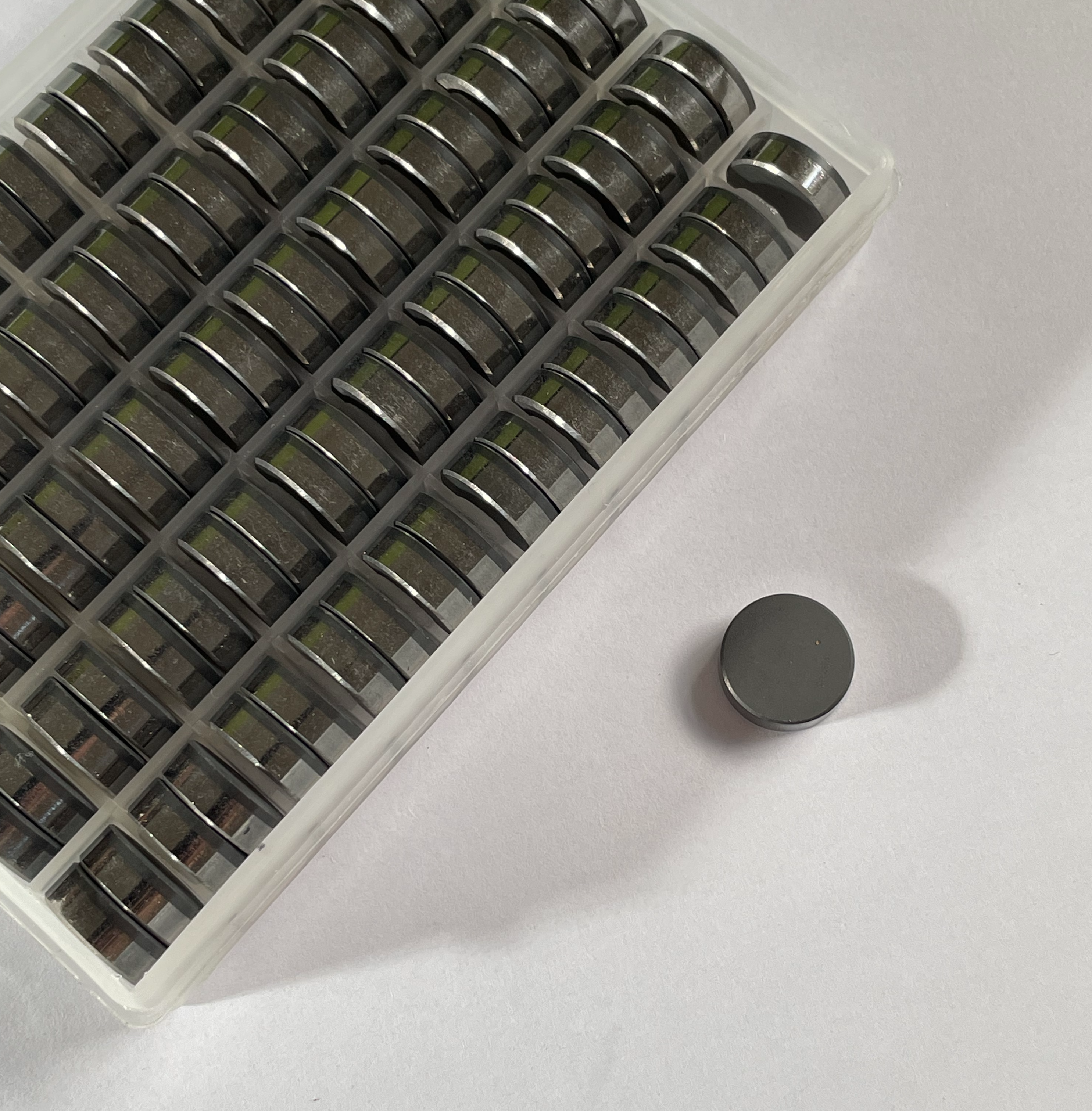

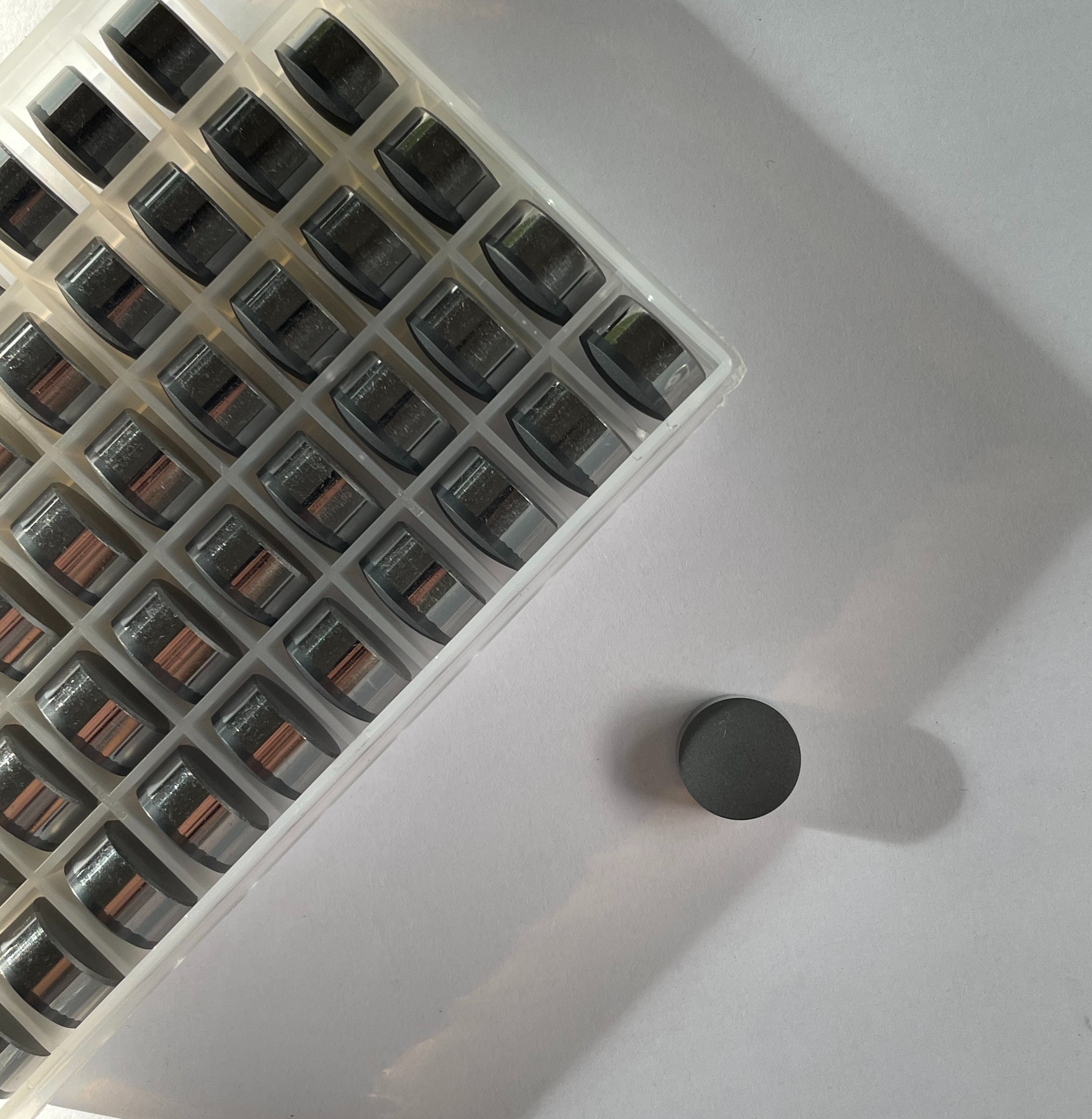

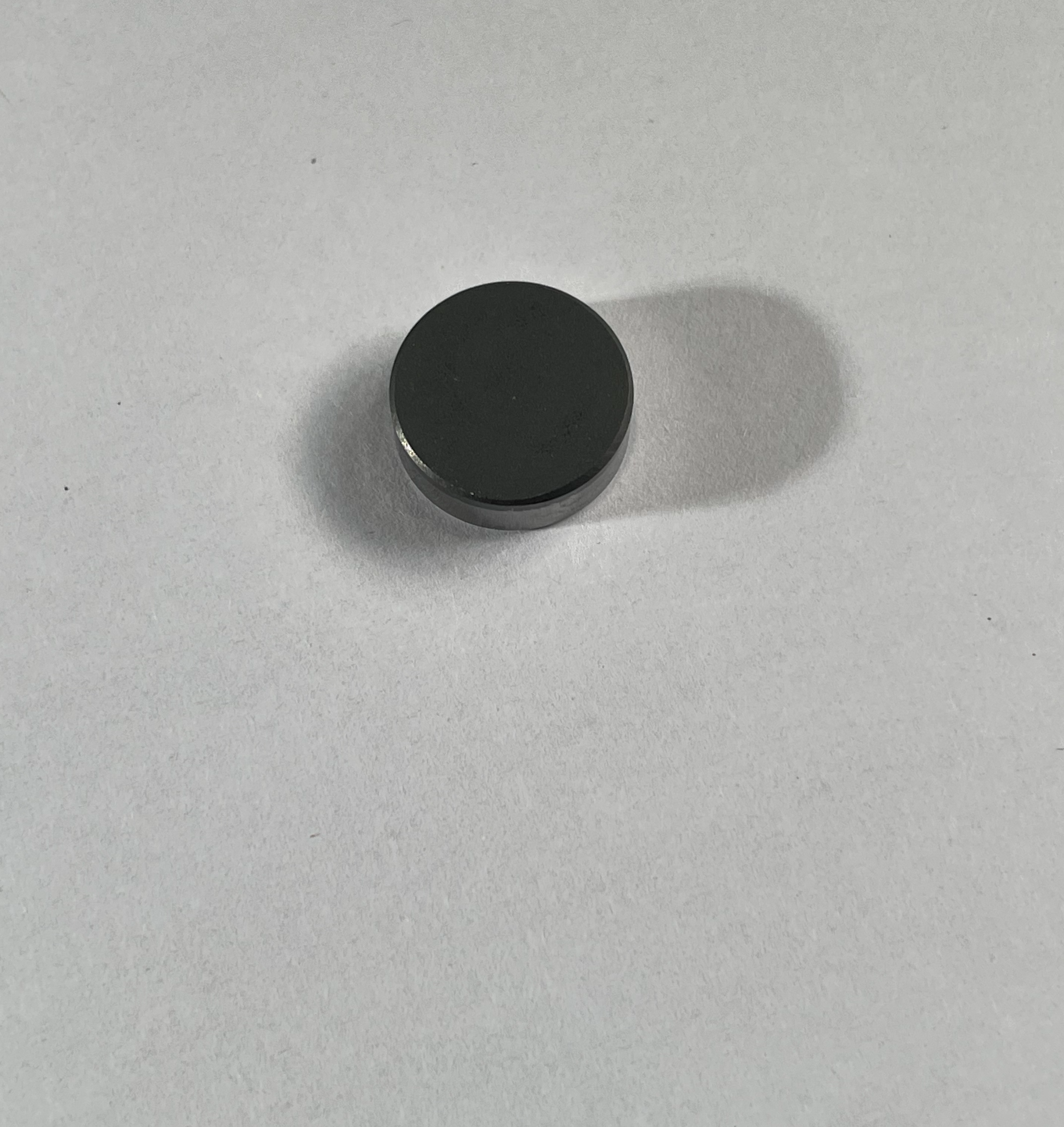

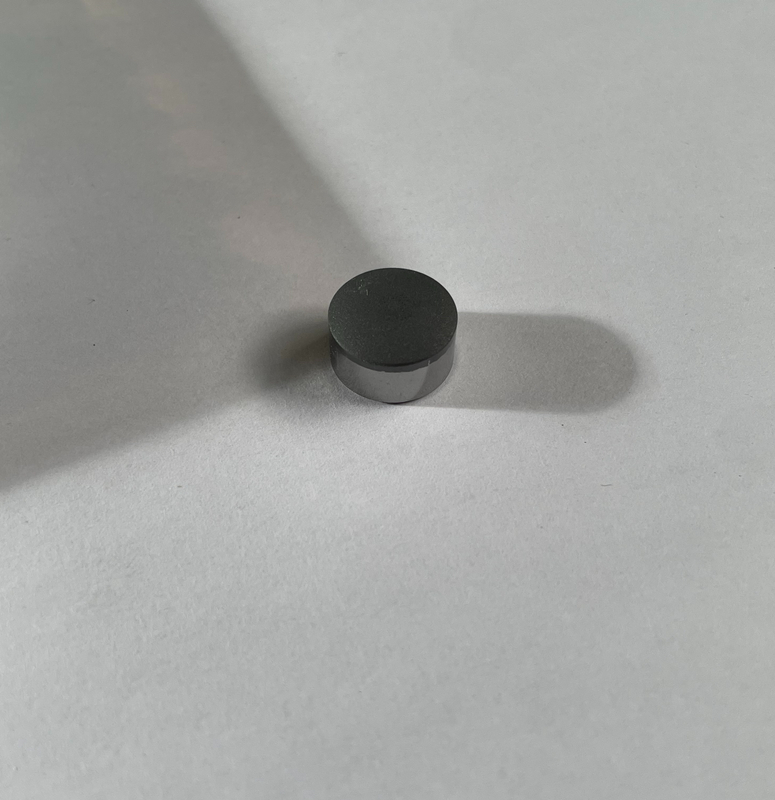

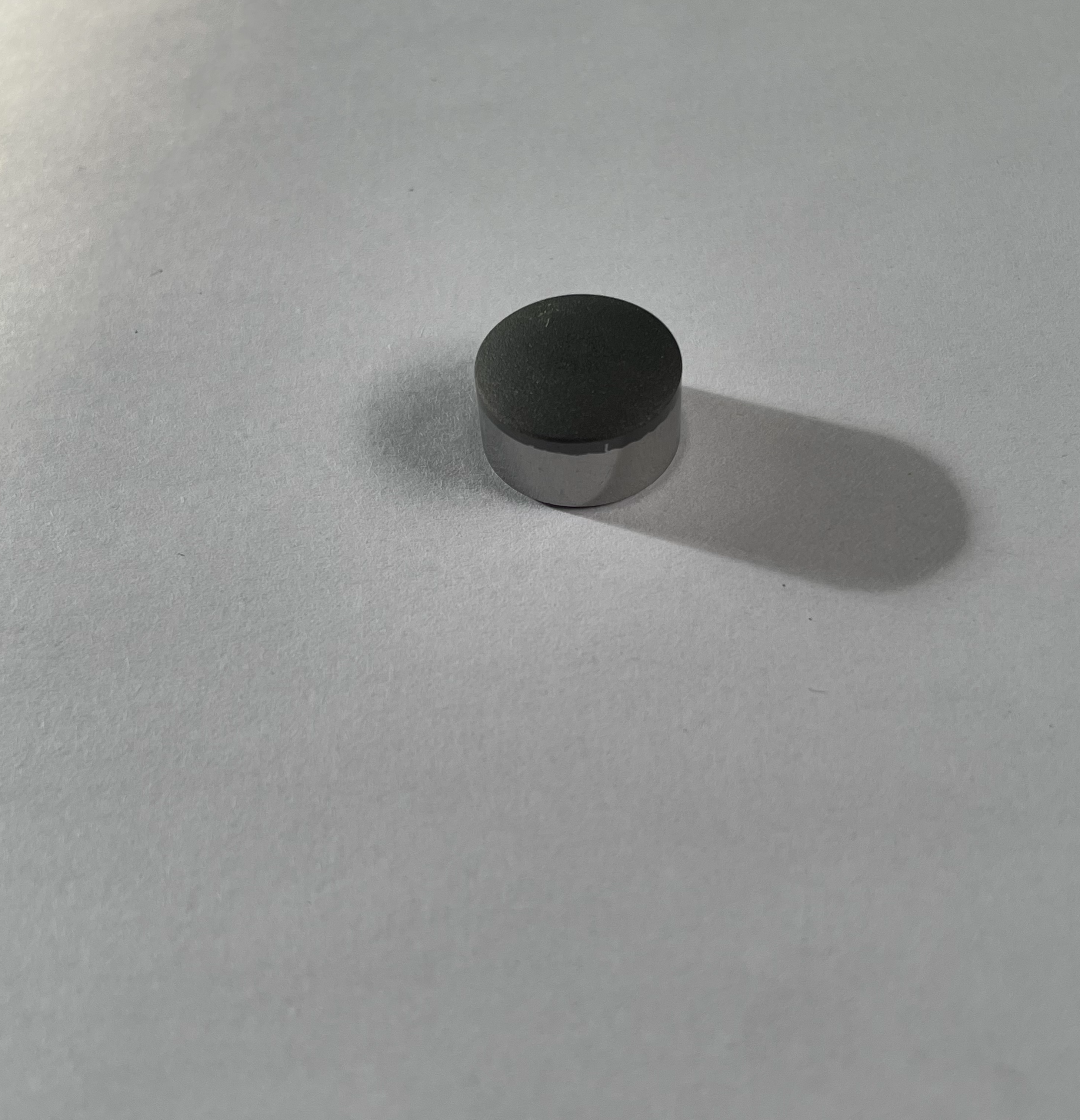

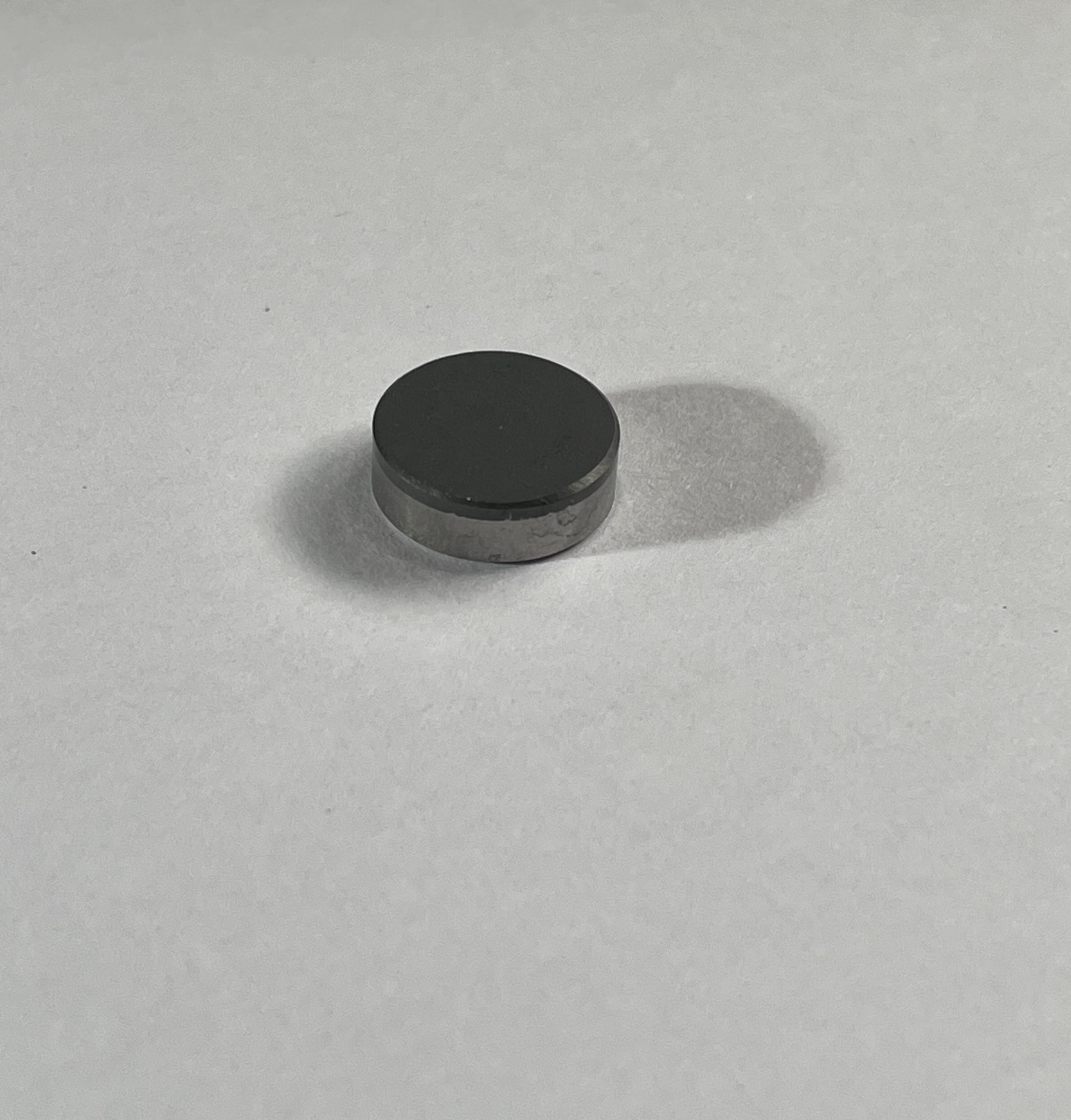

The Flat PDC Cutter is the industry-standard cutting element designed for maximum efficiency in soft to medium-hard geological formations. By combining a high-density polycrystalline diamond layer with a tough tungsten carbide substrate, this cutter utilizes a "shearing" action to rapidly fracture rock. It is the most versatile choice for the primary cutting blades of PDC bits, ensuring a high Rate of Penetration (ROP) and consistent performance.
Key Features
High-Efficiency Shearing: The perfectly flat diamond face is engineered to "slice" through formations, significantly reducing the energy required for rock fragmentation compared to traditional crushing bits.
Superior Thermal Stability: Features an advanced diamond-carbide interface designed to rapidly dissipate heat, preventing thermal degradation of the cutters during high-speed rotation.
Exceptional Wear Resistance: Utilizes premium industrial-grade synthetic diamonds that maintain a sharp cutting edge even in abrasive sandstone or limestone strata.
Proven Impact Toughness: The high-strength tungsten carbide substrate absorbs operational shocks, effectively preventing delamination or breakage under standard drilling loads.
Universal Compatibility: Available in a wide range of standard diameters (8mm to 19mm) and thicknesses to fit various PDC bit designs and reaming tools.
| Feature | Specification |
| Product Name | Flat PDC Cutter (Planar) |
| Diamond Layer | High-Density Polycrystalline Diamond |
| Substrate Material | High-Toughness Tungsten Carbide |
| Cutting Action | High-Speed Shearing |
| Formation Range | Soft to Medium (Shale, Clay, Sandstone, Marl) |
| Interface Design | Planar or Non-Planar (Customizable) |
High-Speed Shearing: The classic planar design provides maximum cutting surface area for exceptional Rate of Penetration (ROP).
Universal Versatility: Suitable for all types of PDC bits and exploration tools, offering an ideal balance of cost and efficiency.
Extended Wear Life: The reinforced diamond layer ensures sharpness over long-distance drilling, reducing the frequency of bit replacements.
PDC Cutter Performance Comparison: Flat vs. Shaped
| Feature | Flat PDC Cutters | Shaped PDC Cutters |
| Mechanism | Shearing: Slices through the formation like a blade. | Plowing/Crushing: Wedges into and fractures rock like a chisel. |
Formation Adaptability | Soft to medium-hard homogeneous formations (e.g., shale, clay). | Hard rock, heterogeneous interbedded strata, and highly abrasive formations. |
Rate of Penetration (ROP) | Extremely fast in soft rock, but efficiency decreases in hard rock. | Higher point-load pressure, enabling deeper penetration in hard formations. |
Impact Resistance | Edges are prone to micro-chipping when facing alternating loads. | Stronger structural integrity; effectively redistributes impact forces to prevent chipping. |
Cooling Performance |
Standard heat dissipation surface area. | Superior cooling due to the increased surface area of the 3D geometry. |
